Down Draft Tables

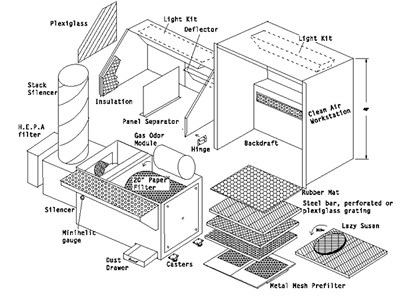

Diversi-tech’s line of industrial downdraft tables incorporate 12 gauge metal construction, built in motor & blower combinations, front or side filter access, deep dust trays, reverse pulse filter cleaning system, and several different grating options. Our downdraft tables also include a unique interchangeable top section that allows us to customize the downdraft table to your specific needs. Work surface 38″ x 30″ to 48″ x 96″.

Mini Down Draft Table

Cleaning Method: Manual

Air Flow: 1,200cfm @ 2.5″ H2O

Face Velocity: 200fpm

Motor: 1HP (120v)

Work Surface: 38″ x 30″

Sound Level: 72 dBA

Filter: paper pleat 20″ x 25″ x 2″

Filter Efficiency: 92% @ 2 micron (qty: 1)

DD 2x4

Cleaning Method: Push button reverse pulse

Airflow: 1,500cfm @ 4″ H2O

Face Velocity: 190fpm

Motor: 1.5HP (120v)

Work Surface: 32″ x 48″

Sound Level: 75 dBA

Filter: Cellulose 17″ dia. x 20″ long

Filter Efficiency: 99.5% @ 0.5 micron (qty: 1)

DD 3 x 4

Cleaning Method: Reverse pulse auto clean

Airflow: 3000cfm @ 4″ H2O

Face Velocity: 250fpm

Motor: 7.5HP (3ph)

Work Surface: 42″ x 48″

Sound Level: 79 dBA

Filter: Cellulose 12″ dia. x 16″ long

Filter Efficiency: 99.5% @ 0.5 micron (qty: 2)

DD 3 x 6

Cleaning Method: Reverse pulse auto clean

Airflow: 4300cfm @ 4″ H2O

Face Velocity: 240fpm

Motor: 7.5HP (3ph)

Work Surface: 42″ x 72″

Sound Level: 79 dBA

Filter: Cellulose 12″ dia. x 16″ long

Filter Efficiency: 99.5% @ 0.5 micron (qty: 2)

DD 3 x 8

Cleaning Method: Reverse pulse auto clean

Airflow: 5050cfm @ 4″ H2O

Face Velocity: 210fpm

Motor: 10HP (3ph)

Work Surface: 42″ x 96″

Sound Level: 81 dBA

Filter: Cellulose 12″ dia. x 16″ long

Filter Efficiency: 99.5% @ 0.5 micron (qty: 4)

DD 4 x 4

Cleaning Method: Reverse pulse auto clean

Airflow: 3000cfm @ 4″ H2O

Face Velocity: 300fpm

Motor: 7.5HP (3ph)

Work Surface: 48″ x 48″

Sound Level: 79 dBA

Filter: Cellulose 12″ dia. x 16″ long

Filter Efficiency: 99.5% @ 0.5 micron (qty: 2)

DD 4 x 6

Cleaning Method: Reverse pulse auto clean

Airflow: 4,300cfm @ 4″ H2O

Face Velocity: 325fpm

Motor: 7.5HP (3ph)

Work Surface: 48″ x 72″

Sound Level: 79 dBA

Filter: Cellulose 12″ dia. x 16″ long

Filter Efficiency: 99.5% @ 0.5 micron (qty: 2)

DD 4 x 8

Cleaning Method: Reverse pulse auto clean

Airflow: 5,050cfm @ 4″ H2O

Face Velocity: 270fpm

Motor: 10.0HP (3ph)

Work Surface: 48″ x 96″

Sound Level: 81 dBA

Filter: Cellulose 12″ dia. x 16″ long

Filter Efficiency: 99.5% @ 0.5 micron (qty: 4)

DD 4 x 4



Cleaning Method: Reverse pulse auto clean

Airflow: 3000cfm @ 4″ H2O

Face Velocity: 300fpm

Motor: 7.5HP (3ph)

Work Surface: 48″ x 48″

Sound Level: 79 dBA

Filter: Cellulose 12″ dia. x 16″ long

Filter Efficiency: 99.5% @ 0.5 micron (qty: 2)

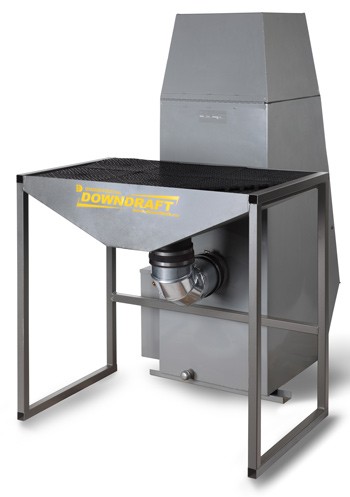

DD Mini-Wet

Table surface: perforated grill with PVC matting.

Scrubber has removal front door with explosion relief vent / meets NFPA guidelines.

Push button motor starter and thermal overload protection.

Internal inducers in scrubber remove dust particles from airflow and causes them to settle in water tank.

Sound suppressor: unique motor cover design keeps noise level to a minimum.

Water level control allows for user’s connection to a water supply line with easy water level maintenance.

Optional side and back walls, casters, light kit, silencer.

Other sizes available:

DD 2′ x 4′-WET

DD 3′ x 6′-WET

more information coming soon.
